GATE2018-36

• edited by
0 votes
0 votes

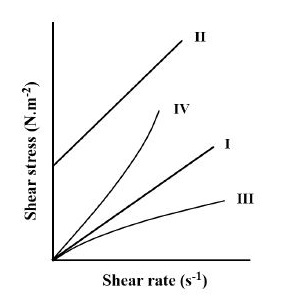

Shear stress versus shear rate behavior of four different types of fluids (I, II, III and IV) are shown in the figure below.

Which one of the following options is correct?

  1. I-Newtonian, II-Bingham plastic, III-Dilatant, IV-Pseudoplastic
  2. I-Pseudoplastic, II-Dilatant, III-Newtonian, IV-Bingham plastic
  3. I-Newtonian, II-Pseudoplastic, III-Bingham plastic, IV-Dilatant
  4. I-Newtonian, II-Bingham plastic, III-Pseudoplastic, IV-Dilatant



• edited by

Please log in or register to answer this question.

Voting & Accepting an answer helps improve the community
Answer:
